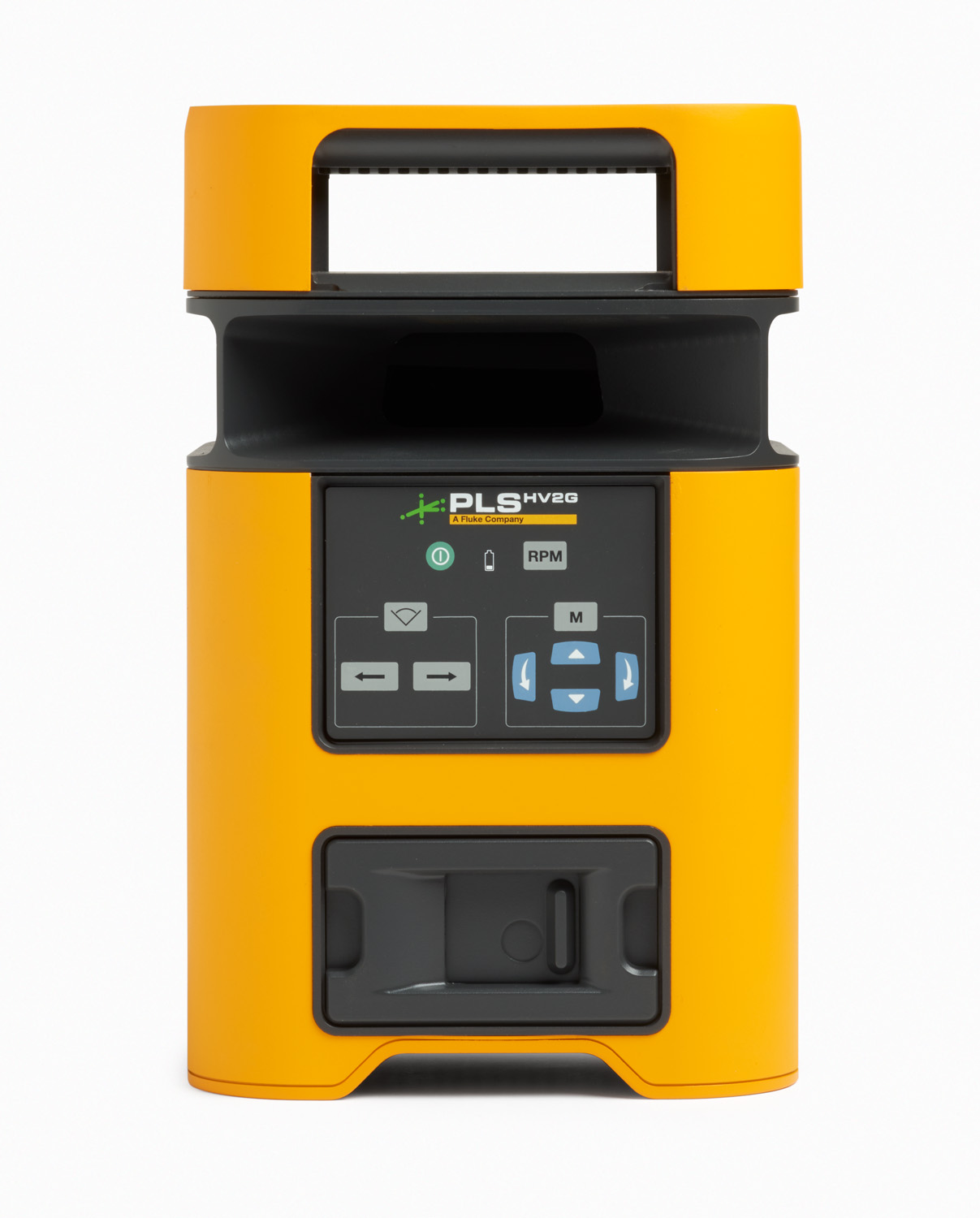

HV2G Green Rotary Laser Level

Buy now

Green Horizontal / Vertical Rotary Laser

The HV2G green rotary laser level emits a self-leveling horizontal laser plane and can be used in the vertical position to emit a vertical laser plane.

  • Applications include setting foundations and footings, concrete pours, drywall terracing, contour framing and suspended ceiling installation.
  • HV2G comes with metal ceiling and wall bracket to help with large suspended ceiling layout and installation
  • The kit includes elevating tripod and 16-foot grade rod.
  • Statement of Memory Volatility

Additional information


3/32" @ 100' (2.4mm @ 30m)


4 D Alkaline, NIMH Rechargeable

Laser Class

Class II

IP Rating

Product IP Rating 67

Operating Time

60 hours

  • Metal ceiling and wall bracket
  • elevating tripod and 16-foot grade rod

Technical Data

H2, HV2R, HV2G, and Combo Kit Data Sheet


  • PLS WCB10 The PLS WCB10 is a metallic rotary wall and ceiling mount for all PLS rotary laser levels. The WCB10 is included with the PLS HV2R and PLS HV2G System and Kit configurations.
  • The PLS C19 Rotary Laser Level Carrying Case is a plastic carrying case for the PLS H2, PLS HV2R, and PLS HV2G rotary lasers. The case contains molded spots for the rotary laser, detector, remote, battery packs, reflective targets, and ceiling mount.
