PLS HVR 505 G Green Rotary Laser System

SKU: PLS-60579

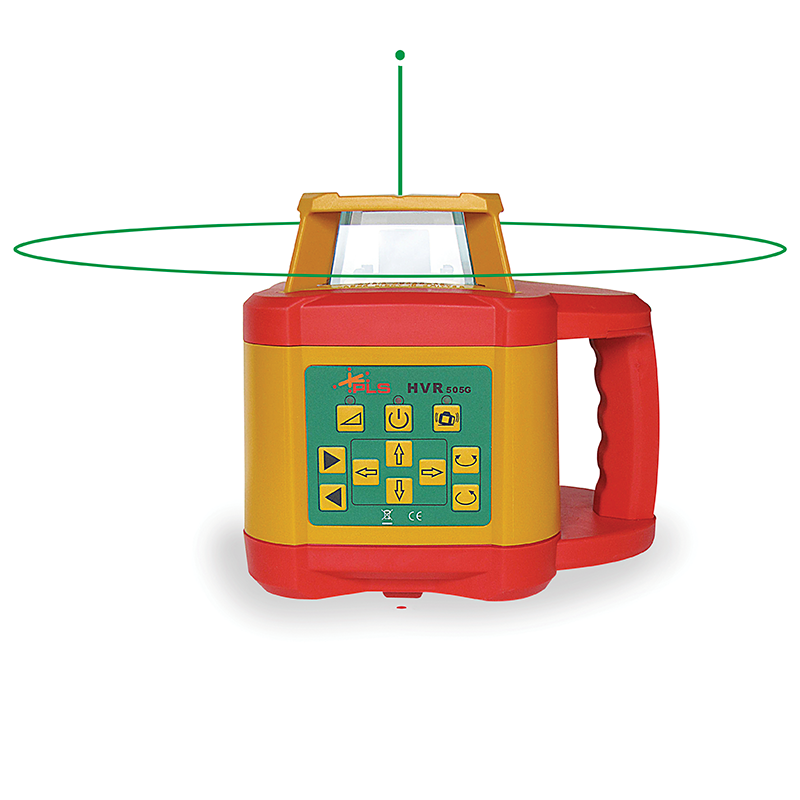

The PLS HVR 505G is a compact, green rotary laser level ideal for long range interior construction projects, such as drywall, and acoustic ceiling layout. Designed to give up to three times the visibility of traditional rotary lasers, use on horizontal and vertical axes, with an accuracy of +/- 1/8 of an inch at 100 feet. The PLS HVR 505G is fully self-leveling to within 5 degrees, sets up quickly, and gives bright, clear laser lines.

Additional information

Weight 78.4 oz
Dimensions 7.5 × 8 × 6 in
Laser Class

Laser Class IIIA

Self-Leveling Range

6 degrees


1/8" @ 100' (3mm @ 30m)

Working Range

500' (150m) w/detector


NIMH Rechargeable or 4 C (included)

Operating Time

20 hours continuous

IP Rating

Product IP Rating 64

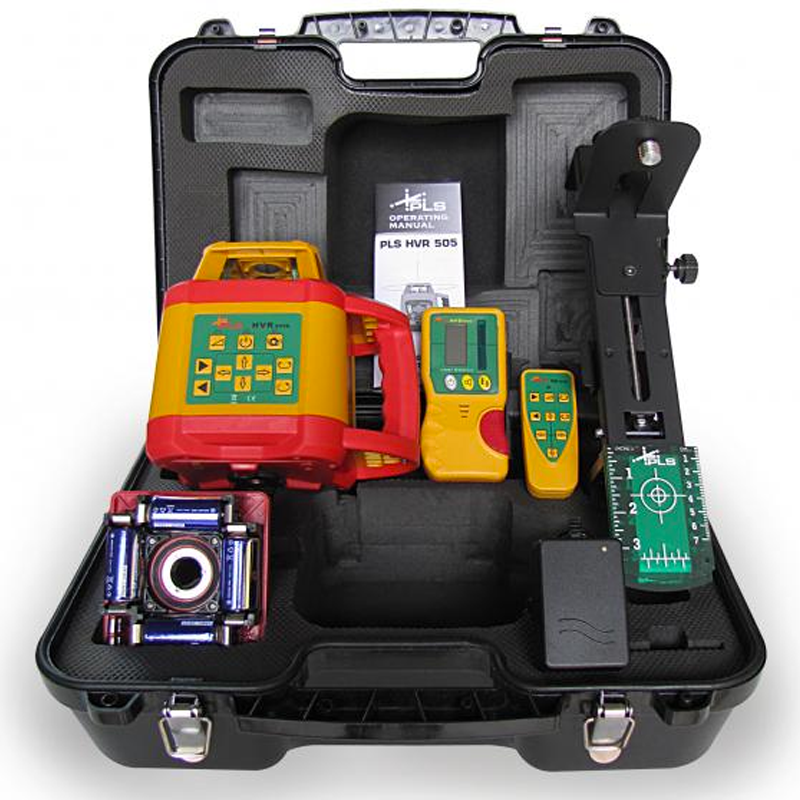

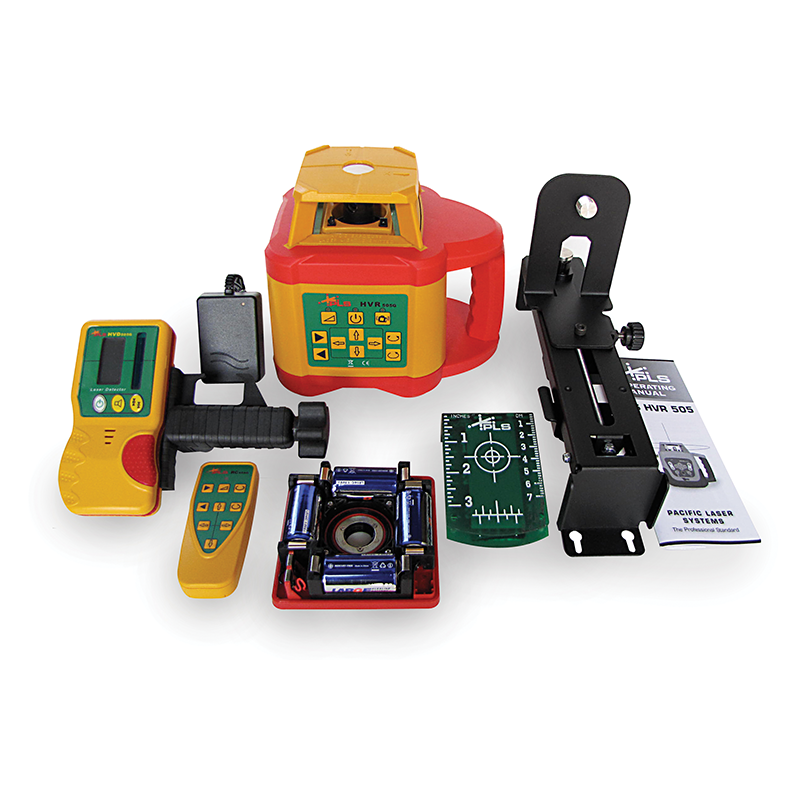

  • PLS HVR 505G green rotary laser level
  • PLS RC Remote Control

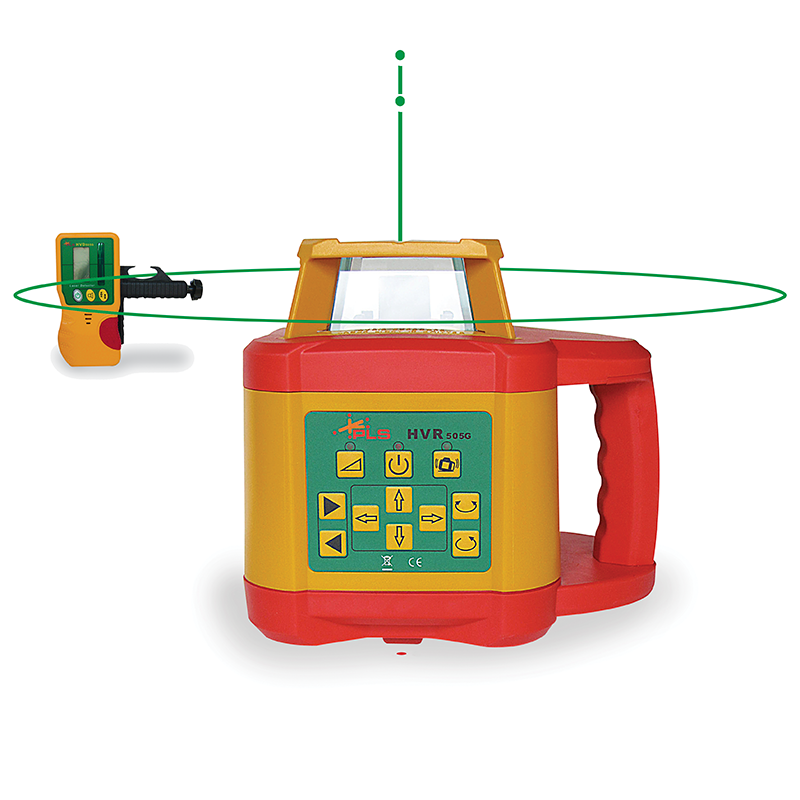

  • PLS HVD 505 Detector

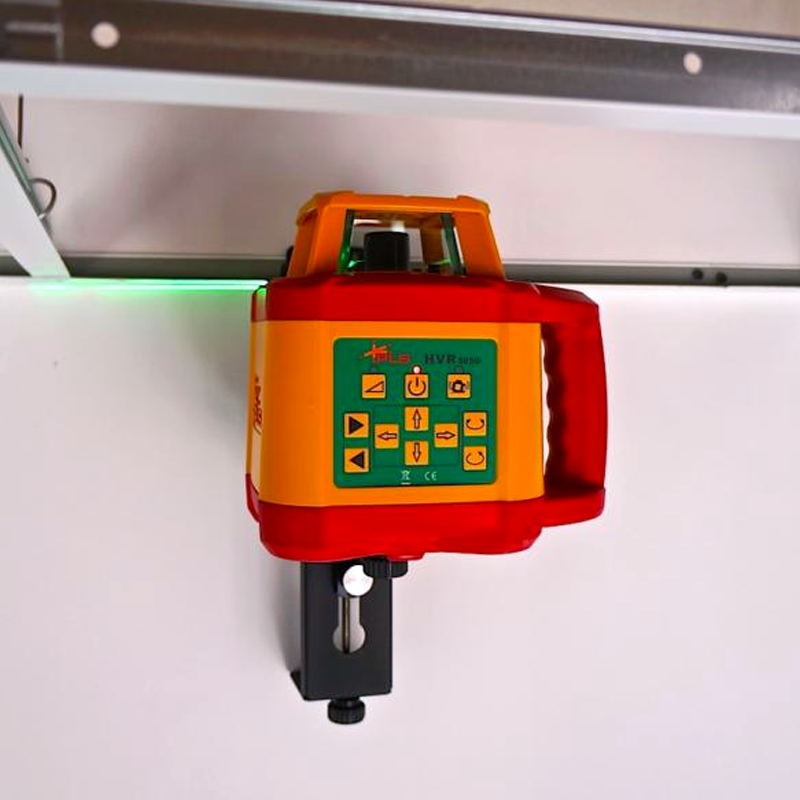

  • Ceiling Bracket
  • (2) Magnetic Laser Targets
  • Both Alkaline and NIMH battery packs
  • Charger
  • Operating Manual

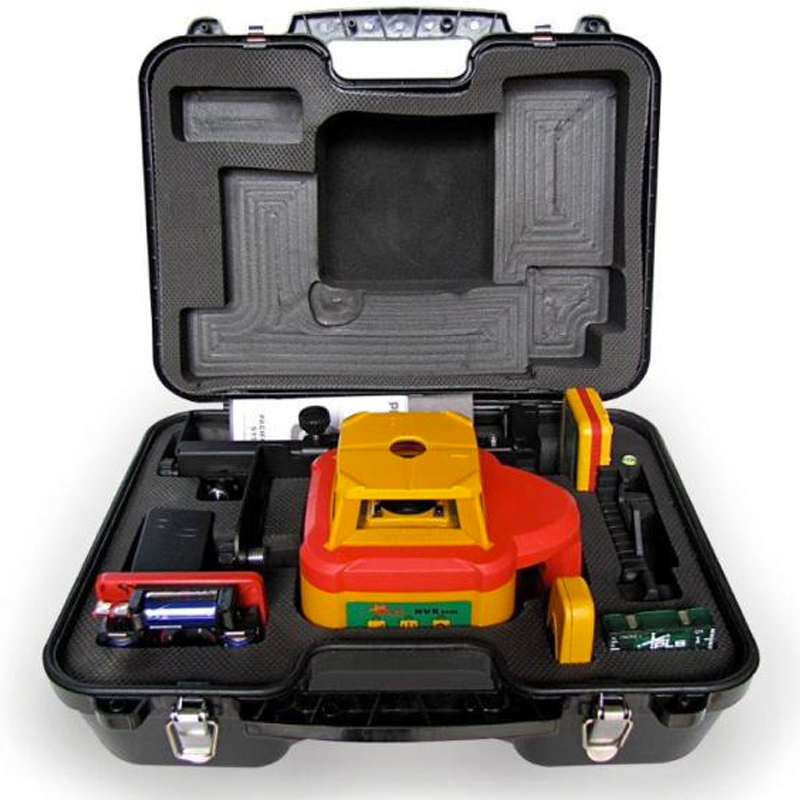

  • Carrying Case
